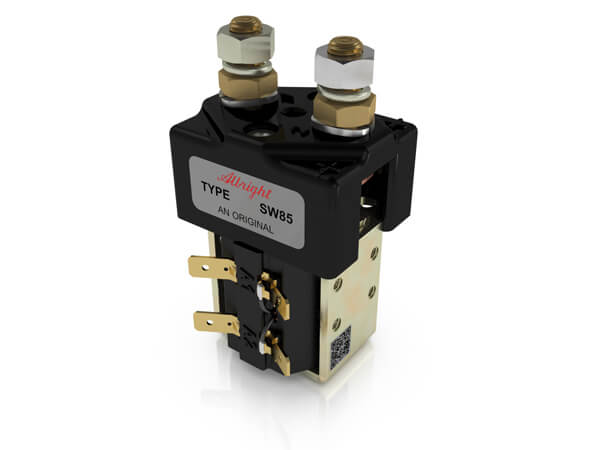

The SW85 has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW85 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW85 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW85 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point downwards. If the requirement is for upwards orientation we can adjust the contactor to compensate for this.
Please note Normally Closed contacts are not suited to make and break load.
|Thermal Current Rating||-||100A|
|Intermittent Current Rating:|
|Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*)|
|Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*)|
|Blowouts||150A at 96V D.C.|
|No Blowouts||150A at 48V D.C.|
|Maximum Recommended Contact Voltages|
|Typical Voltage Drop per pole across New Contacts at 100A||50mV|
|Mechanical Durability||> 5,000,000 Cycles|
|Coil Voltage Available (Us) (Rectifier board required for A.C.)||6 - 240V|
STANDARD - GOLD
V3 - GOLD
DIODE AND RESISTOR
