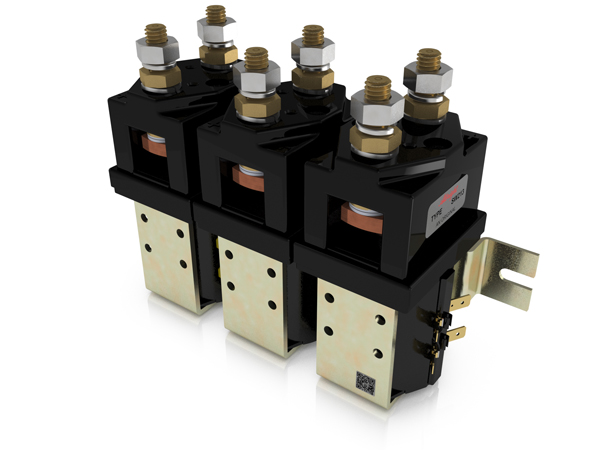

The SW213 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW213 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW213 features 3 x single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW213 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M10 contact studs should point downwards.
Please note Normally Closed contacts are not suited to make and break load.
|Thermal Current Rating||250A||250A|
|Intermittent Current Rating:|
|Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*)|
|Blowouts||1500A at 96V D.C.|
|No Blowouts||1500A at 48V D.C.|
|Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*)|
|Maximum Recommended Contact Voltages|
|Typical Voltage Drop per pole across New Contacts at 250A||40mV|
|Mechanical Durability||> 5,000,000 Cycles|
|Coil Voltage Available (Us) (Rectifier board required for A.C.)||6 - 240V|
STANDARD - GOLD
V3 - GOLD
DIODE AND RESISTOR
