SW2000

NO - SP - ST

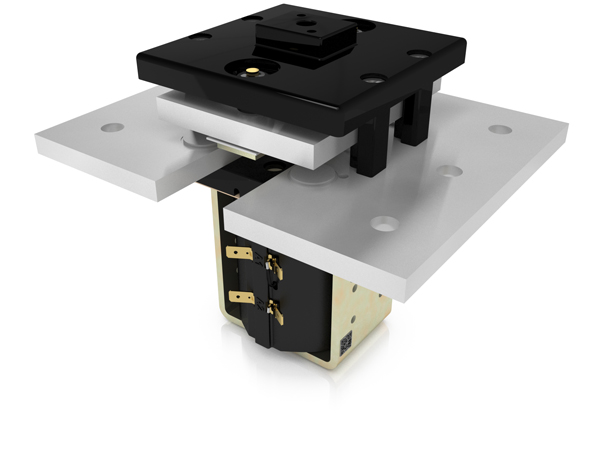

The SW2000 is designed for use in telecommunication and power distribution applications where an uninterrupted load is switched.  These contactors are primarily for use with Direct Current loads but can also be used with Alternating Currents.

The SW2000 features double breaking main contacts with silver alloy tips which are weld resistant, hard wearing and have excellent conductivity.  Silver plating on the main contacts is standard for the SW2000, however, optionally it can be excluded from the specification.  This compact contactor can be busbar mounted vertically or horizontally, however if mounted vertically, the coil should be at the bottom.  Optional extras include auxiliary switches, brackets, coil finishes and magnetic latching – this allows the contactor to remain closed while consuming no coil power.

SW2000 Technical Information

Application
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating - 2000A
Intermittent Current Rating:
30% Duty - 3650A
40% Duty - 3160A
50% Duty - 2830A
60% Duty - 2580A
70% Duty - 2390A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*)
Blowouts -
No Blowouts -
Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*)
Blowouts -
No Blowouts 2500A at 60V D.C.
Maximum Recommended Contact Voltages
Blowouts - -
No Blowouts - 60V
Typical Voltage Drop per pole across New Contacts at 2000A 50mV

Mechanical Durability > 1,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 6 - 240V

SW2000 Features

Component Configurations
Auxiliary
STANDARD
STANDARD - GOLD
V3
V3 - GOLD
Coil Suppression
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
Coil Terminations
AMP TAGS
FLYING LEADS
VACCUM IMPREGNATION
Mounting Options
'L' Shaped Bracket Kit
M5 Tapped Holes
