SU60P

NO - SP - ST - IP66

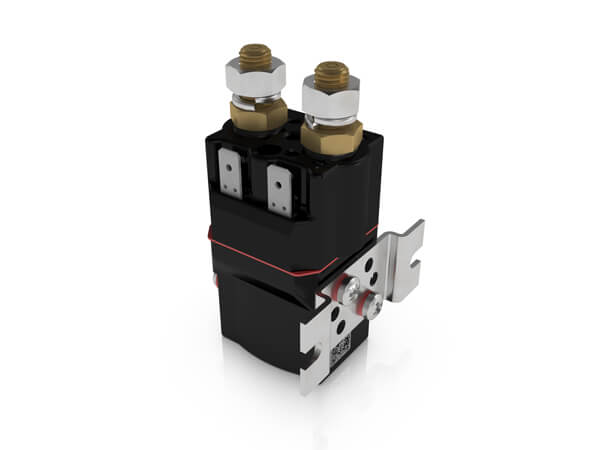

The SU60P is a high rated freestanding compact contactor which is sealed to IP66. Devised for both interrupted and uninterrupted loads, and is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors as used on small electric vehicles and hydraulic power packs.

The SU60P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.  The SU60P has M8 stud main terminals and 6.3mm spade coil connections.  It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items.  Mounting can be on the side or base of the contactor.

SU60P Technical Information

Application
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating 100A 100A
Intermittent Current Rating:
30% Duty 185A 185A
40% Duty 160A 160A
50% Duty 140A 140A
60% Duty 130A 130A
70% Duty 120A 120A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*)
Blowouts 500A at 96V D.C.
No Blowouts 500A at 48V D.C.
Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*)
Blowouts 150A at 96V D.C.
No Blowouts 150A at 48V D.C.
Maximum Recommended Contact Voltages
Blowouts 96V 120V
No Blowouts 48V 60V
Typical Voltage Drop per pole across New Contacts at 100A 50mV

Mechanical Durability > 3,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 6 - 130V

SU60P Features

Component Configurations
Coil Suppression
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
Coil Terminations
AMP TAGS
Mounting Options
Top Hat Bracket Kit
DIN Bracket Kit
