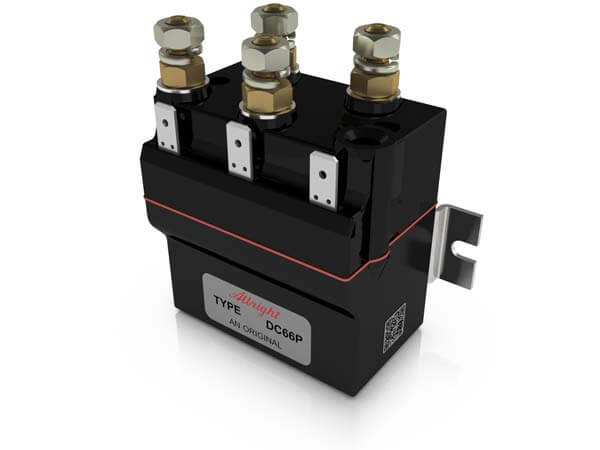

The DC66P is a compact contactor following the established design of our mono block contactors, configured specifically for motor reversing. Suitable for Direct Current loads and compatible with modern electronic control systems, the DC66P is sealed to IP66 and is ideal for use in applications such as battery powered winches, vehicle mounted cranes and small electric vehicles. Devised for both interrupted and uninterrupted loads, the DC66P is suitable for switching Resistive, Capacitive and Inductive loads.
The main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.
|Thermal Current Rating||80A||80A|
|Intermittent Current Rating:|
|Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*)|
|No Blowouts||500A at 60V D.C.|
|Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*)|
|No Blowouts||120A at 48V D.C.|
|Maximum Recommended Contact Voltages|
|Typical Voltage Drop per pole across New Contacts at 80A||40mV|
|Mechanical Durability||> 3,000,000 Cycles|
|Coil Voltage Available (Us) (Rectifier board required for A.C.)||6 - 130V|
DIODE AND RESISTOR
